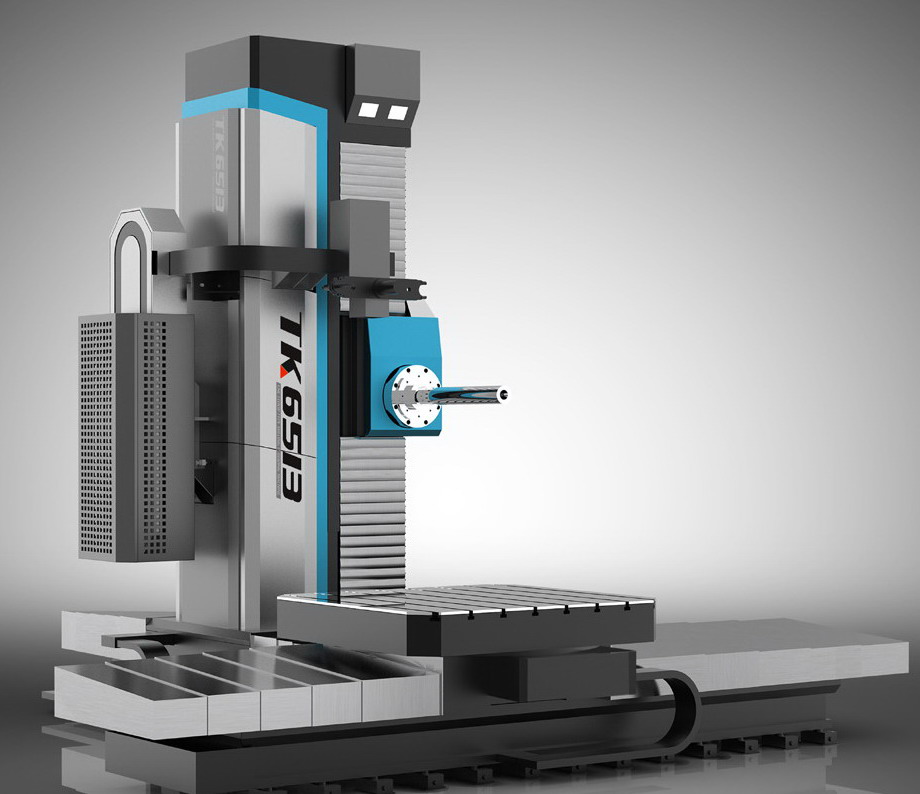

TK65 series-Without Ram type





A Spindle
Spindle diameter 110/130/160mm
Spindle taper ISO50
Shank specification JT50
Pull stud BT50
Max. Spindle speed 1500r/min(Op:2000/3000rpm)
B Structure data
Motor power-Servo 30（Kw）
Table size 2000X1800mm
Table loading capacity 8-50ton
Max spindle torque 2500Nm
Max spindle thrust 20000N
C Working range
Cross travel of table         X 2000 to 4000mm
Vertical travel of spindle head Y 1500 to 4000mm
Longitude travel of column   V  1000 to 2500mm
Axial travel of boring spindle  Z 800mm
Table rotary tavel    B 360°（Radom） 0.001°
D Feed range
X、Y 1-3000mm/min
W轴angemle headletionand chip conveyor are availableoil coolant circul 1-2000mm/min
Z 1-2000mm/min
B 0.003-1r/min
E Rapid movement
X、Y 6000mm/min
W、Z 5000mm/min
V 4000mm/min
B 1.5r/min
F Positioning accuracy
X、Y、Z ±0.025mm
B 8″
Repeatability
X、Y ±0.02mm
Z ±0.02mm
B 6″
