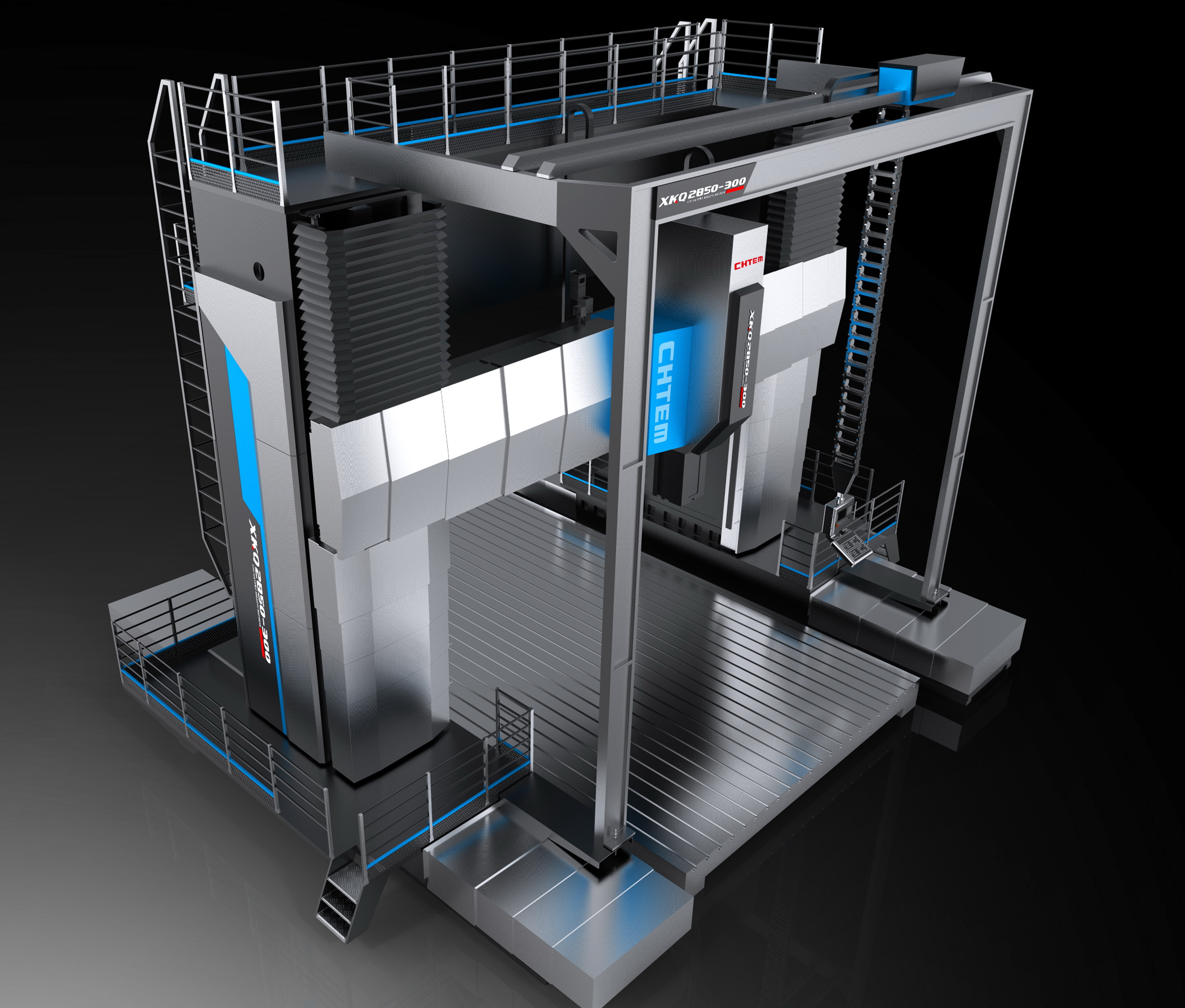

Gantry Milling-Gantry Moving





Item Unit Value
Spindle
Motor power-Spindle-Fanuc servo motor KW 37/51/71
Spindle speed  (2 steps ZF gearbox) rpm 20-2000(Op:6000/10000)
Spindle taper 　 ISO50/ISO60 (7:24)
Ram section size mm 400x400/500x500
Travel
X axis travel（Worktable） mm 6000 to 40000
Y axis travel (spindle travel in crossbeam) mm 3000 to 8000
Z axis travel (Spindle vertical travel) mm 1000 to 2500
Distance from spindle nose to worktable mm 250-1250/1500/1750/2000
Distance between two columns mm 3200 to 8200
Worktable
Worktable size (L x W) mm 3000x6000(Could be other size)
Worktable loading capacity ton 15/20/25ton per square meter
Feeding
X axis rapid travel mm/min 6000
Y axis rapid travel 8000
Z axis rapid travel 2000
Feeding rate mm/min 5-4000
Accuracy
X axis positioning accuracy mm ±0.02/1000mm
Y axis positioning accuracy mm ±0.02/1000mm
Z axis positioning accuracy mm ±0.02/1000mm
Repetitive positioning accuracy mm 0.015/1000mm
