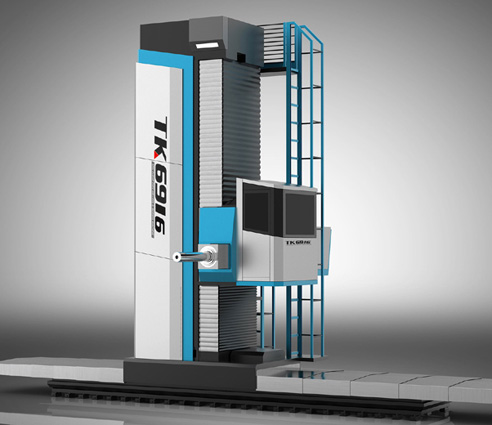

TK6920-Spindle 200mm





Specification Unit T6913/TK6913 T6916/TK6916 T6920/TK6920 T6926/TK6926
Boring shaft diameter mm 130 160 200 260
Spindle taper hole ISO 50 50 60 60
Boring spindle speed rpm 2-800 2-800 2-800 2-800
Ram size mm 380*420 480*520 480*520 640*720
Boring bar with ram travel mm 1500 2400 2400 3200
Boring  spindle travel mm 700 1200 1200 1600
Ram stroke mm 800 1200 1200 1600
Spindle box vertical stroke mm 2000 3000 4000 6000
Column before and after stroke mm 4000 6000 8000 12000
Ram / spindle feedrate mm/min 0.5-4800 0.5-4800 0.5-4800 0.5-4800
Column feed rate mm/min 1-5600 1-5600 1-5600 1-5600
Spindle box feed rate mm/min 1-5600 1-5600 1-5600 1-5600
Main motor power KW 30 51 71 110
