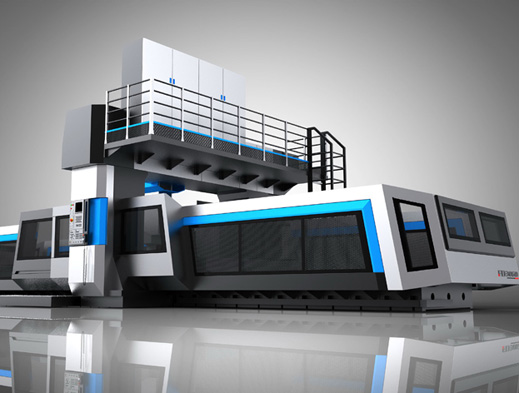

Gantry Milling-Table Moving





Item Unit Parameter
Spindle
Motor power KW 22/30/51
Spindle speed Rpm 20-6000(Op:10000rpm)
Spindle taper 　 ISO50/ISO60 (7:24)
Diameter of spindle bearing Mm 100
Travel
X axis travel（Worktable） Mm 2200 to 8000
Y axis travel (spindle travel in crossbeam) Mm 1800 to 5000
Z axis travel (Spindle vertical travel) Mm 1000 to 2500
Distance from spindle nose to worktable mm 250-1250/1500/1750/2000
Distance between two columns mm 2000 to 5200
Worktable
Worktable size (L x W) mm 2200x1600(Could be other size)
Worktable loading capacity kg 8000/15000/20000/25000
Feeding
X axis rapid travel mm/min 8000
Y axis rapid travel 8000
Z axis rapid travel 2000
Feeding rate mm/min 5-4000
Accuracy
X axis positioning accuracy mm ±0.02/1000mm
Y axis positioning accuracy mm ±0.02/1000mm
Z axis positioning accuracy mm ±0.02/1000mm
Repetitive positioning accuracy mm 0.015/1000mm
